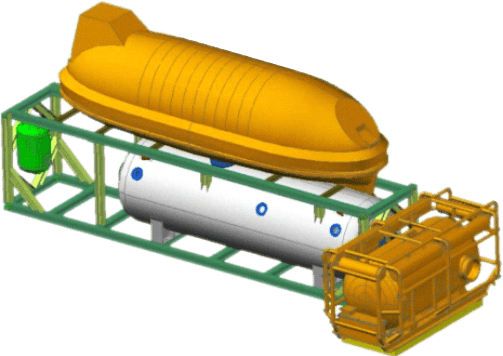

UG 300HRF 2L-12: 12-man Hyperbaric Reception Facility

The combined saturation control and machinery area is housed in a 20′ standard ABS shipping container.

Provides mobility, security, and climate control while on location.

This is a stand-alone, high-pressure hyperbaric reception facility .

It is capable of housing 10 divers for up to 26 days upon completion of surface decompression.

The HRF dive chamber is able to receive an SPHL, with a bottom mating trunk, via a custom TUP mating spool.

Clamp arrangement (not included in standard scope of supply) and/or receive an HRC via an end-mate custom spool and clamp arrangement (not included in standard scope of supply).

1 x Twinlock chamber (300m Seawater depth; Twinlock; ASME VIII Div 1 and ABS design code; 10 bed/12 person; wet-pot is a TUP)

1 x Integral Chamber Support Frame (ABS lifting standards and conforms dimensionally to ISO 6346:1995 as a Type 45GO size code – 40-foot High Cube Dry Container.

1 x HRF Sat Control & Machinery Container (Mounted in a 20′ ABS freight container.

EDB; 2 x Environmental Control Units – ECU 200; a Fixed Chamber Fire Fighting System – internal deluge; 1 x potable water unit and a Waste Water System.

1 x Basic spares set

Ideal for offshore hyperbaric applications
